Data-Oriented Design

Not just for performance

What is DOD?

Think about the data FIRST, before anything else.

It came from game developers

Its sworn enemy is object-oriented programming

Which function should we optimize?

func a(x float64) float64 {
	return math.Sqrt(x)
}

var data []float64
func b(x int) float64 {
	return data[x]
}


float Q_rsqrt( float number )
{
	long i;
	float x2, y;
	const float threehalfs = 1.5F;
	x2 = number * 0.5F;
	y = number;
	i = * ( long * ) &y; // evil floating point bit level hacking
	i = 0x5f3759df - ( i >> 1 ); // what the fuck?
	y = * ( float * ) &i;
	y = y * ( threehalfs - ( x2 * y * y ) ); // 1st iteration
	return y;
}


func a(x float64) float64 {
	return math.Sqrt(x)
}

var data []float64
func b(x int) float64 {
	return data[x]
}


Instruction latency

Where's the data?

Register

L1

L2/sqrtps

L3

RAM

Let's not talk about disk or network

We could do 20 sqrts while waiting for RAM

If we could just keep everything in cache...

for ( idEntity* ent = activeEntities.Next();
       ent != NULL;
       ent = ent->activeNode.Next() )
{
       if ( g_cinematic.GetBool() && inCinematic && !ent->cinematic )
       {
               ent->GetPhysics()->UpdateTime( time );
               continue;
       }
       timer_singlethink.Clear();
       timer_singlethink.Start();
       RunEntityThink( *ent, cmdMgr );
       timer_singlethink.Stop();
       ms = timer_singlethink.Milliseconds();
       if ( ms >= g_timeentities.GetFloat() )
               Printf( "%d: entity '%s': %.1f ms\n", time, ent->name.c_str(), ms );
       num++;
}

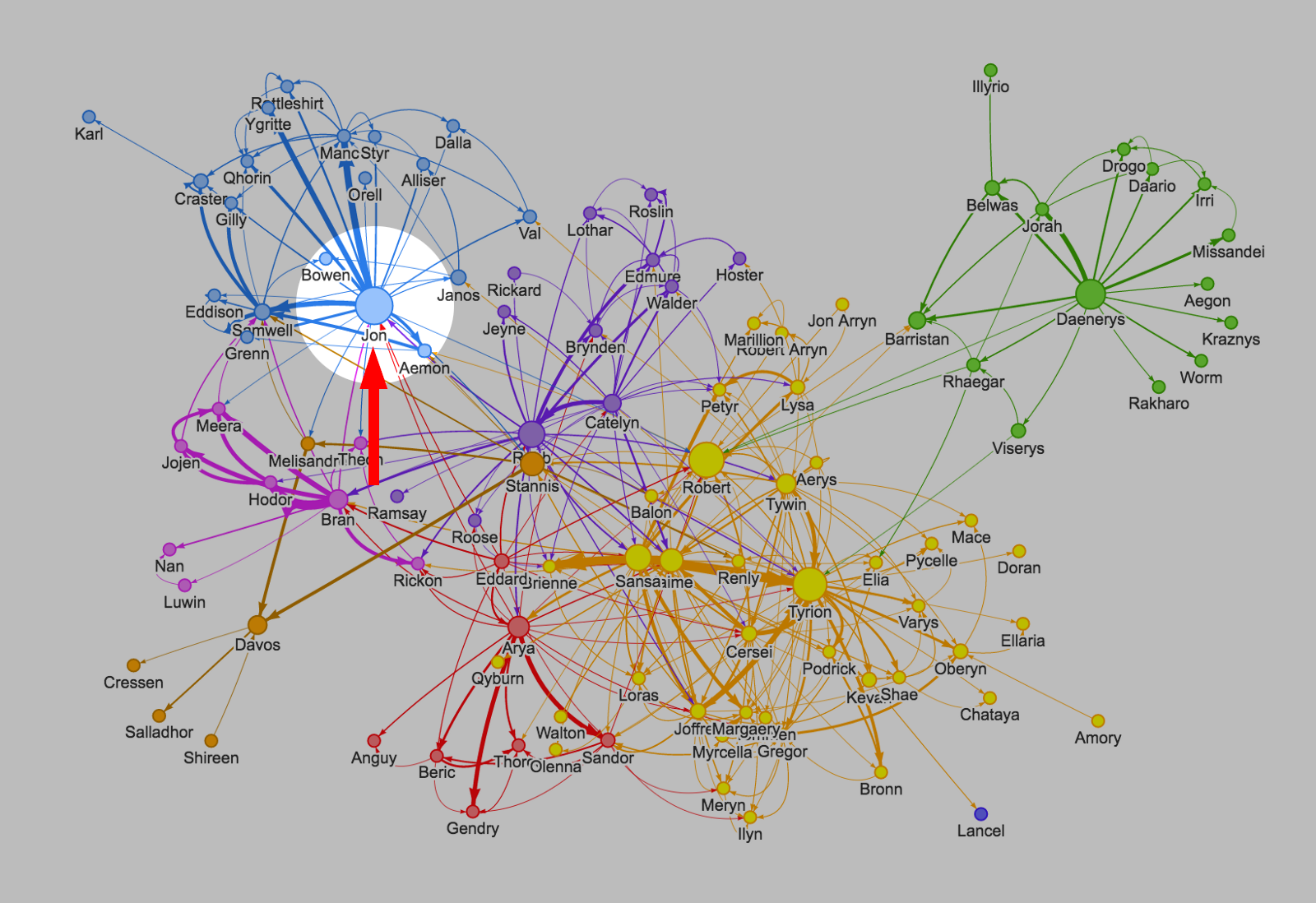

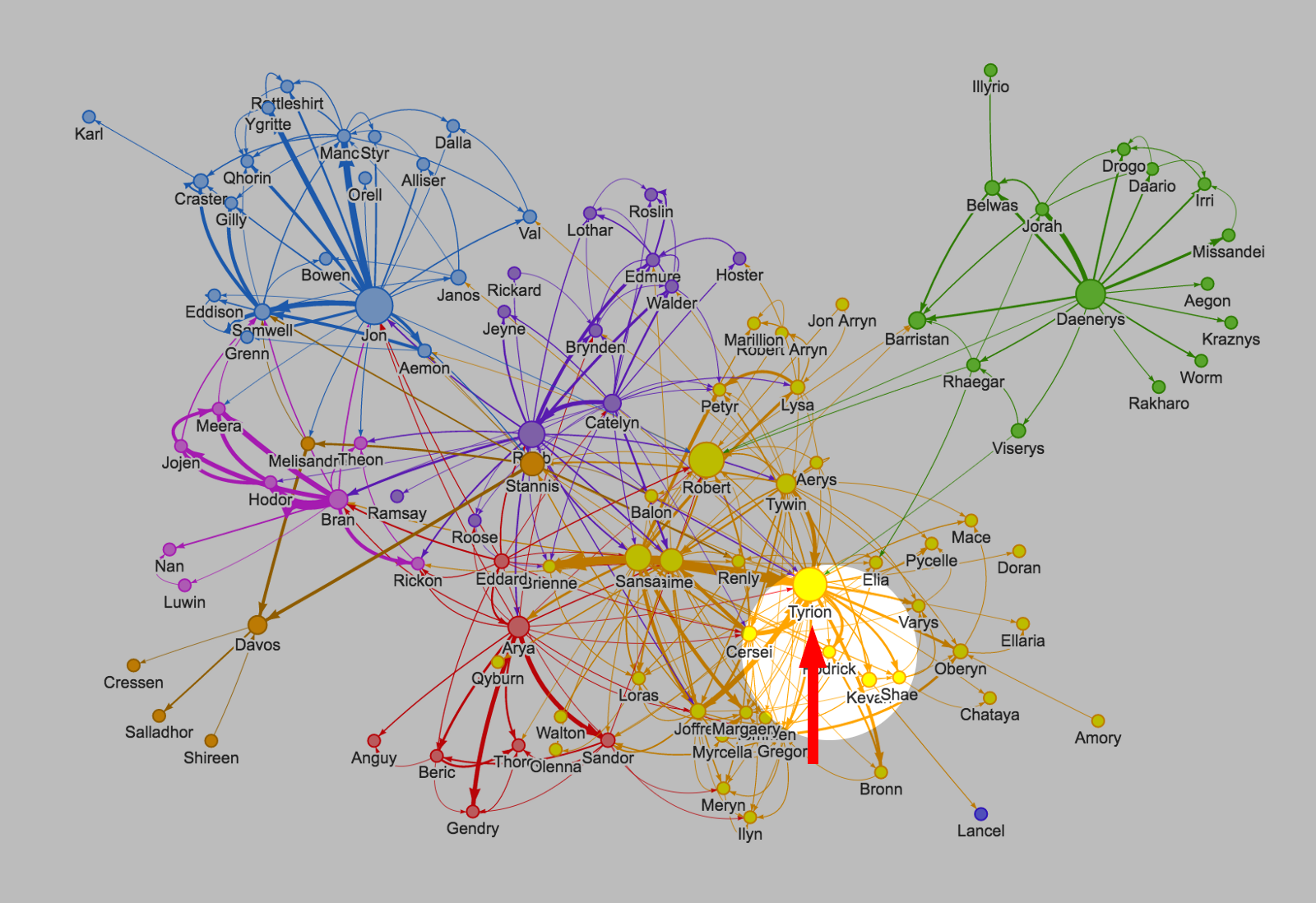

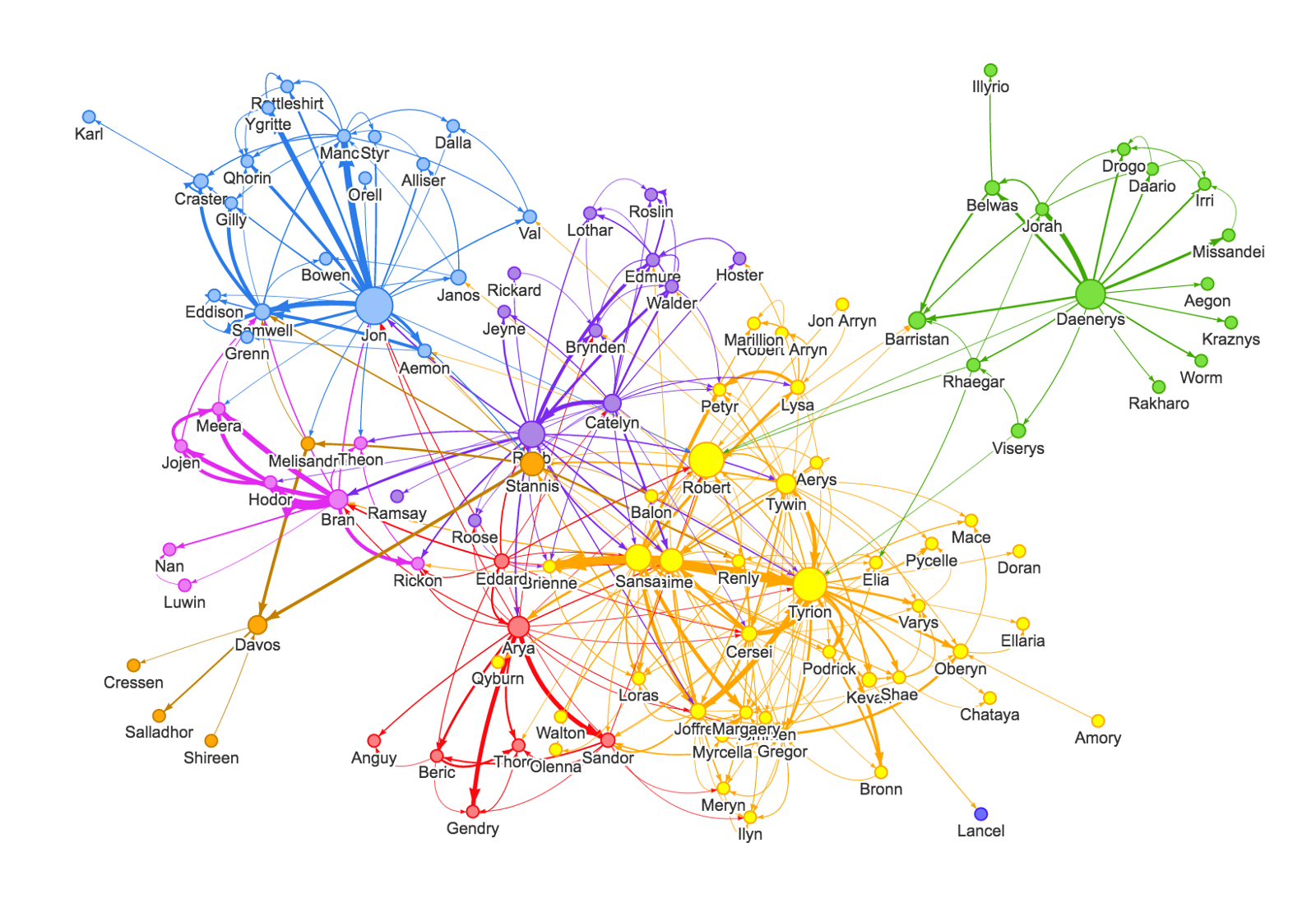

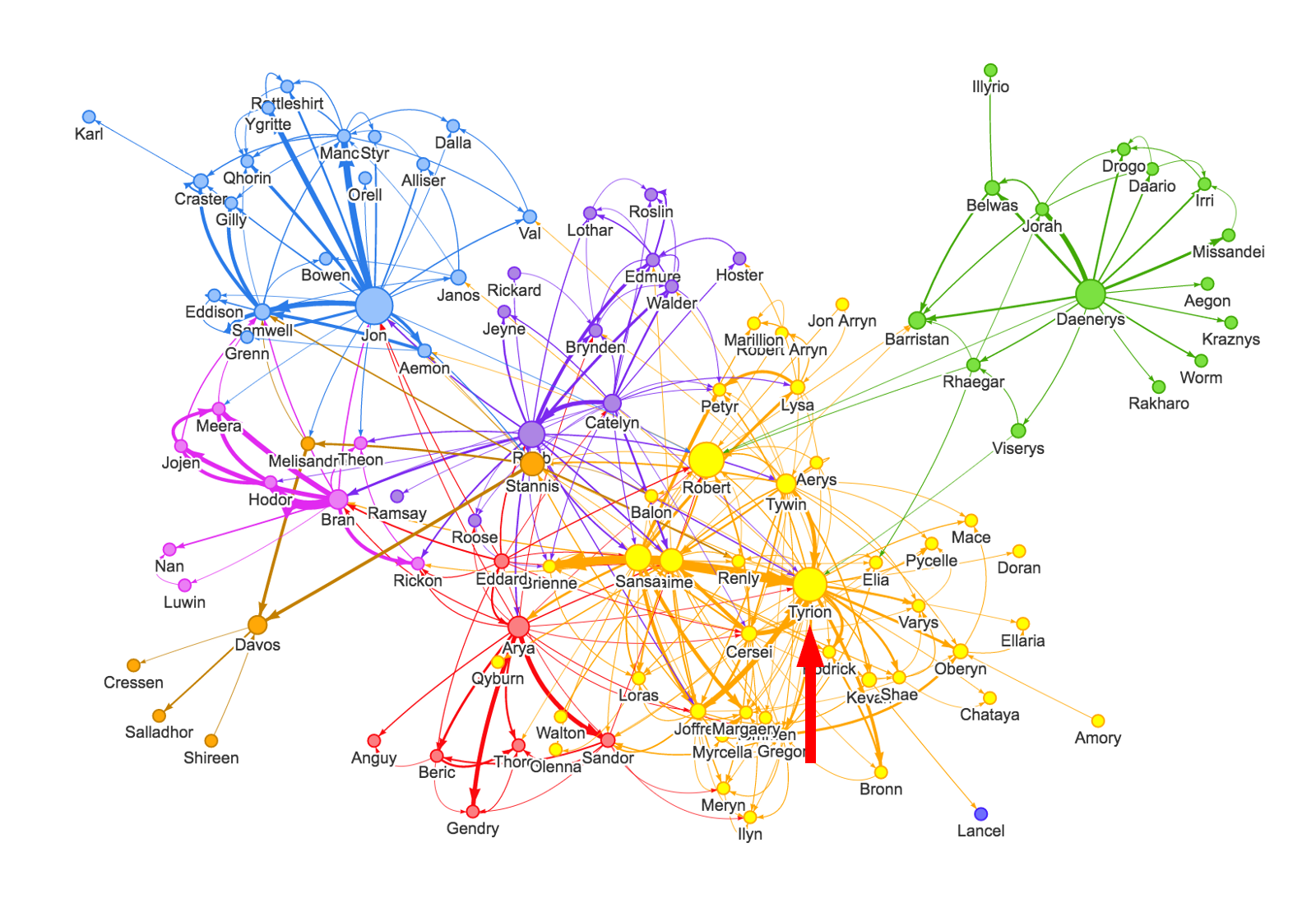

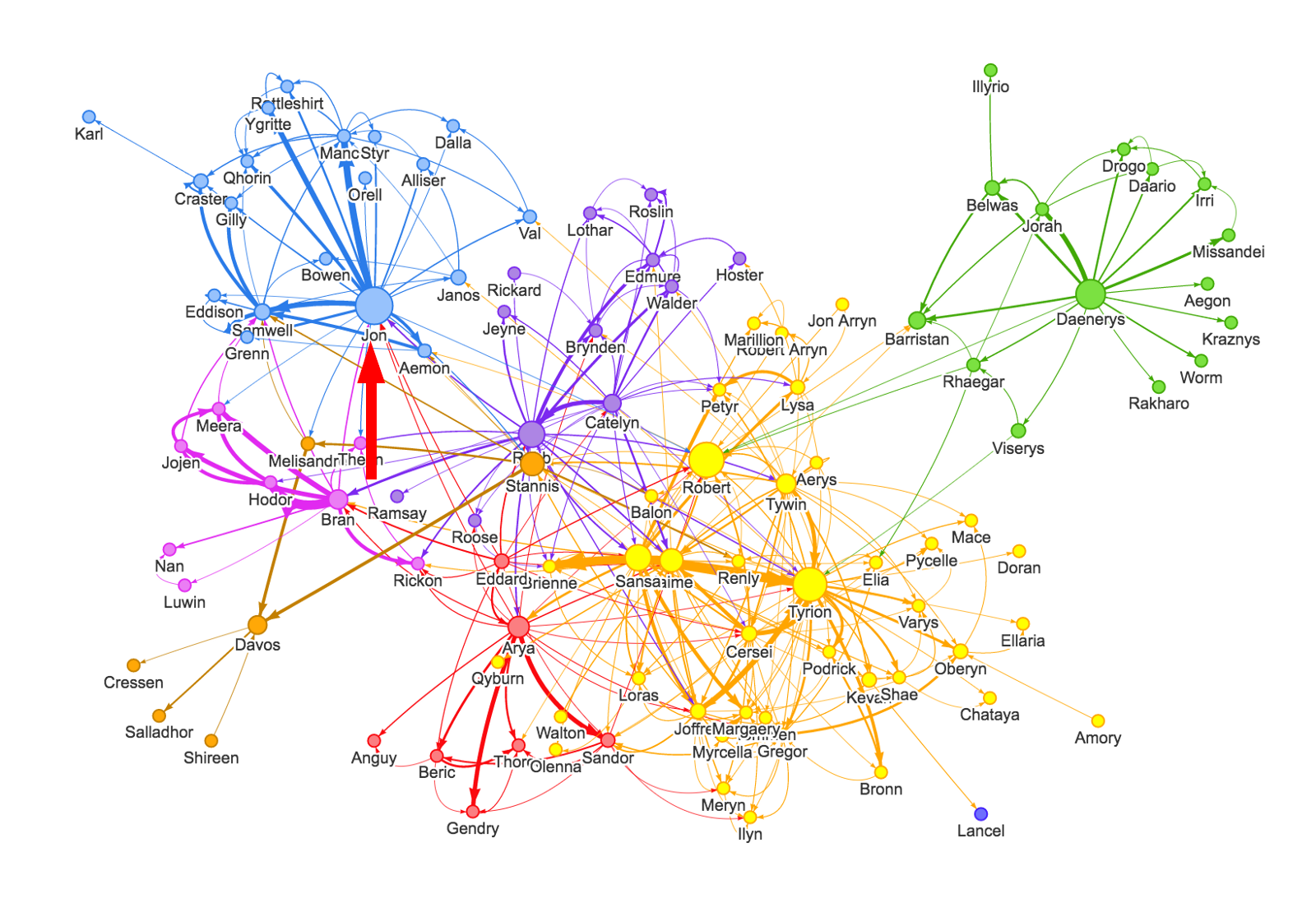

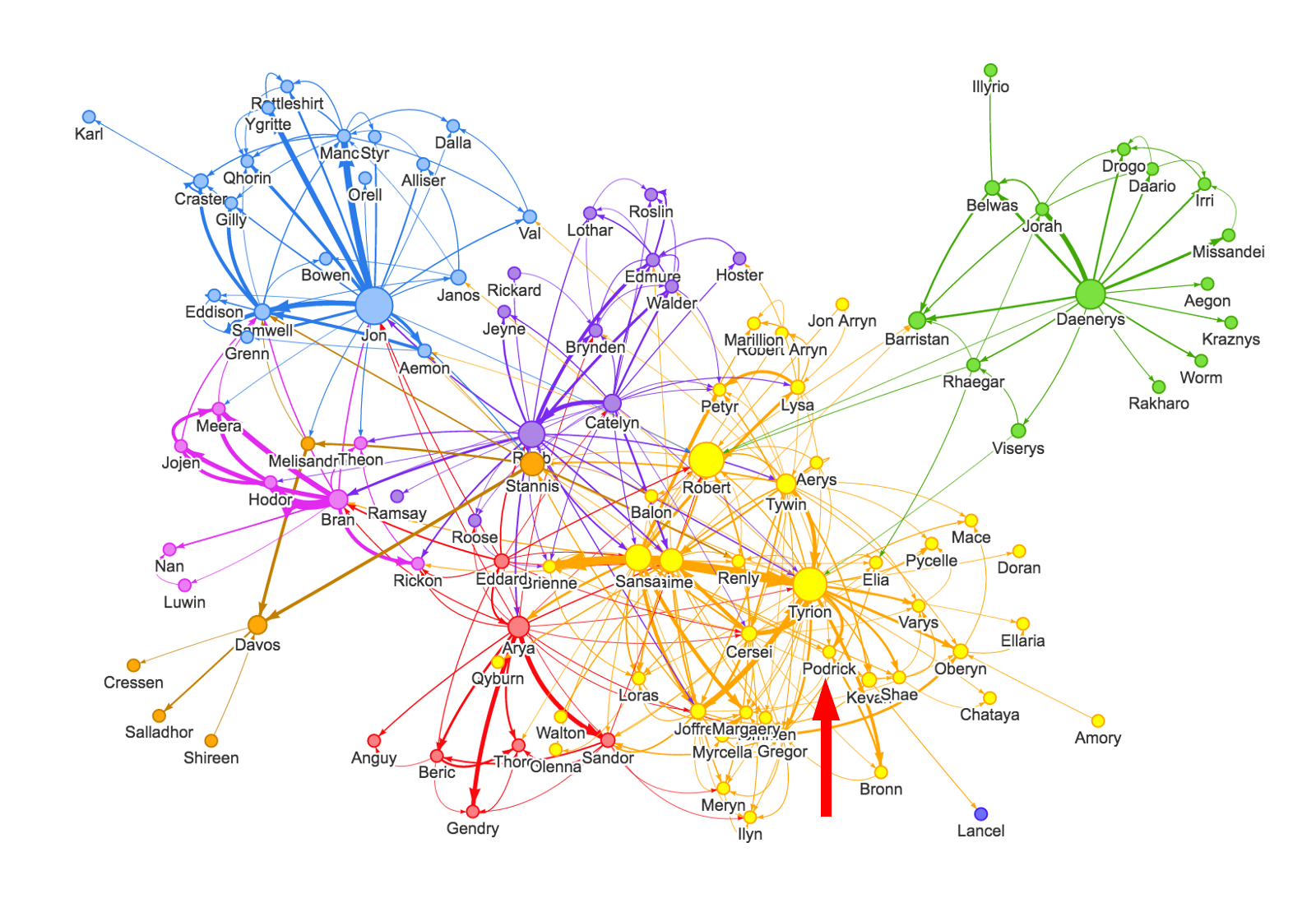

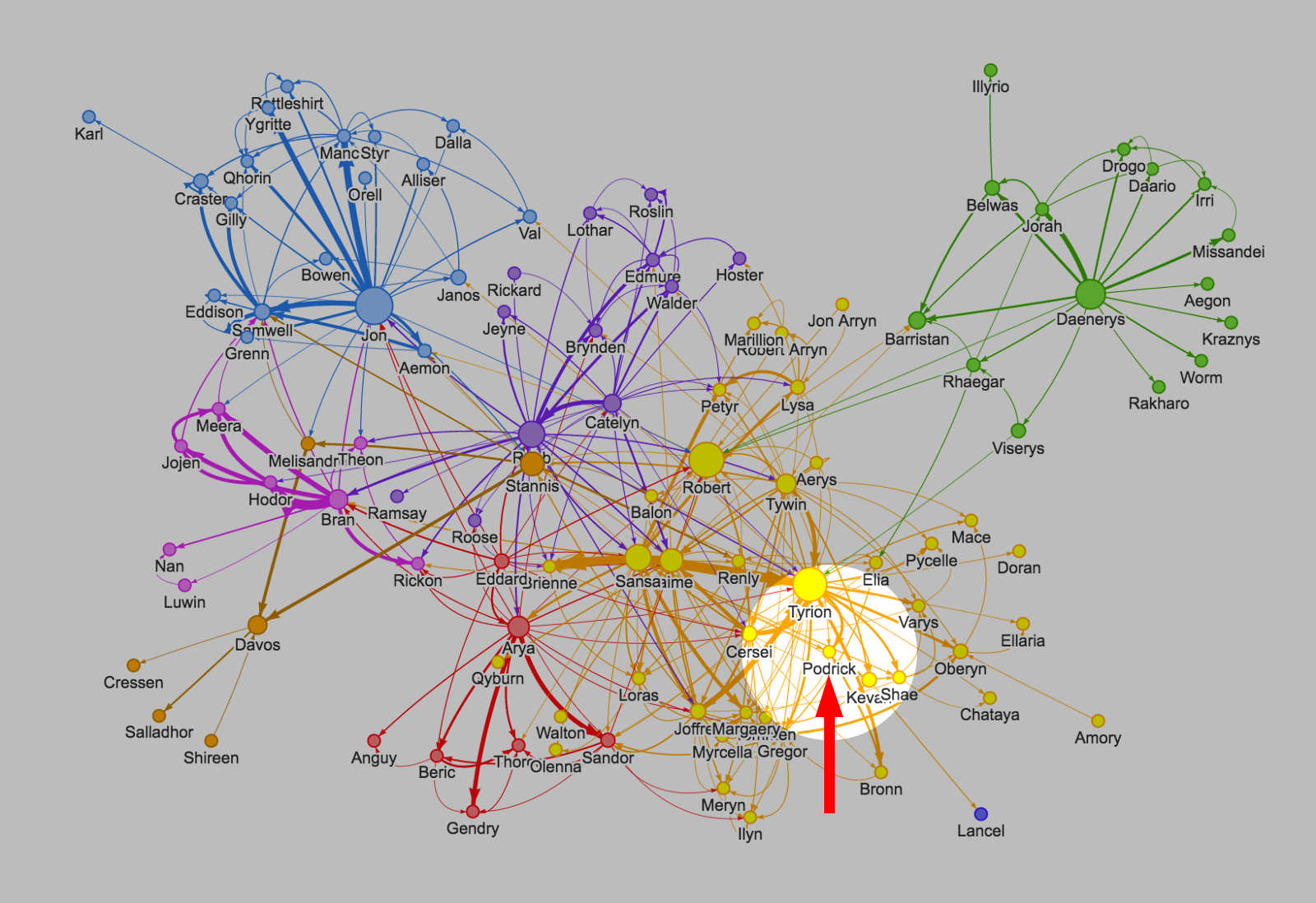

DOOM 3 memory visualized

Data-oriented questions

• What is executing?
• In what order is it executing?
• Where is the data stored in memory?

A data-oriented update function

for (int i = 0; i < rigid_bodies.length; i++)
       rigid_bodies[i].update();

for (int i = 0; i < ai_controllers.length; i++)
       ai_controllers[i].update();

for (int i = 0; i < players.length; i++)
       players[i].update();

// etc...

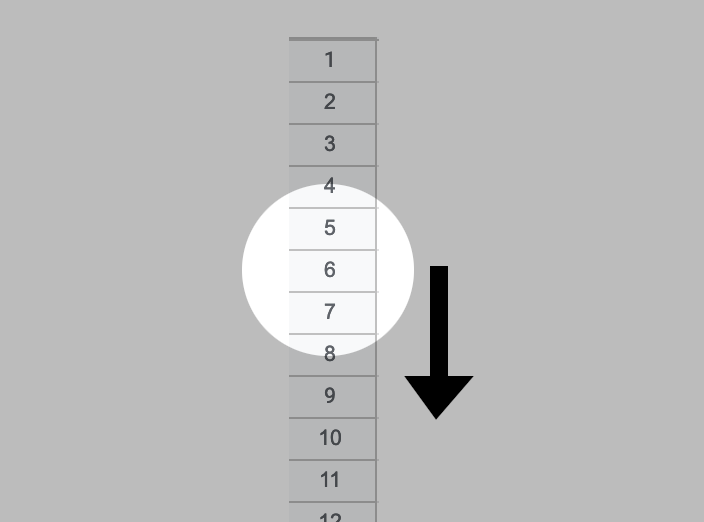

Data-oriented memory visualized

DOD = good performance

OOP = bad performance

The discourse turns toxic

A poor definition

DOD: it's about cache locality and performance

My thesis

DOD: think about the data FIRST, before anything else.

This actually results in better design

What do I mean that DOD results in "better design"?

What exactly is "better design"?

What is software design?

Unstructured programming

L1: push ecx
cmp BYTE PTR[esi], 0
je L4

mov cl, [edi]
cmp cl,0
jge L2
rol BYTE PTR[esi],cl
jmp L3
L2: ror BYTE PTR[esi], cl


Structured programming

30 INPUT "How many stars do you want: "; N
40 S$ = ""
50 FOR I = 1 TO N
60 S$ = S$ + "*"
70 NEXT I
80 PRINT S$


Functional decomposition

func doMath() {
	add(1, 2)
	add(2, 2)
}

func add(x, y int) {
	fmt.Printf("%d\n", x + y)
}


OOP

class Employee {
	String getName();
	void fire();
	void promote();
}


To sum it all up

Abstraction

Trying it out

My friend starts with an abstraction

class Cell {
    int getNumber();
    int getX();
    int getY();
    Player getOwner();
}


• When I combine cell A with cell B, do I delete A or B?
• If I want to move cell A to the left, should the cell move, or should I delete it and create a new one?
• Each cell will need a way to reference its neighbors...
• I'll probably have an array of cells, how do I keep this up to date?
• I'll have to pass the array in to each cell...
• Dang, it's looking like the whole thing is going to be one giant object.

What's the most straightforward, simple way to represent this game in memory?

How about an array of numbers?

//         v
a := [][]int{
    {2, 2, 4, 8},
    {0, 2, 0, 0},
    {0, 2, 2, 0},// <
    {0, 0, 0, 0},
}
a[2][1] += a[2][2]
a[2][2] = 0
//     {2, 2, 4, 8},
//     {0, 2, 0, 0},
//     {0, 4, 0, 0},
//     {0, 0, 0, 0},


To shift and combine this cell to the left...

//         v
a := [][]int{
    {2, 2, 4, 8},
    {0, 2, 0, 0},
    {0, 2, 2, 0},// <
    {0, 0, 0, 0},
}
a[2][1] += a[2][2]
a[2][2] = 0
//     {2, 2, 4, 8},
//     {0, 2, 0, 0},
//     {0, 4, 0, 0},
//     {0, 0, 0, 0},


We just add it to the cell to the left, then zero it out.

//         v
a := [][]int{
    {2, 2, 4, 8},
    {0, 2, 0, 0},
    {0, 2, 2, 0},// <
    {0, 0, 0, 0},
}
a[2][1] += a[2][2]
a[2][2] = 0
//     {2, 2, 4, 8},
//     {0, 2, 0, 0},
//     {0, 4, 0, 0},
//     {0, 0, 0, 0},


To shift the whole grid, we could loop over it and shift each cell.

	for y := 0; y < 4; y++ {
		for x := 1; x < 4; x++ {
			if a[y][x-1] == a[y][x] {
				a[y][x-1] += a[y][x]
				a[y][x] = 0
			}
		}
	}


I bet we could break this into functions...

	func shiftGridLeft(a [][]int) {
		for y := 0; y < 4; y++ {
			for x := 1; x < 4; x++ {
				shiftCellLeft(a, x, y)
			}
		}
	}
	func shiftCellLeft(a [][]int, x int, y int) {
		if a[y][x-1] == a[y][x] {
			return
		}
		a[y][x-1] += a[y][x]
		a[y][x] = 0
	}


Next...

• We could turn these into pure functions
• We could turn the whole grid into an object
• We could write tests

We just progressed through the whole history of software

1. Unstructured programming: a = b
2. Structured programming: for { }
3. Functional decomposition: shiftCellLeft()
4. OOP

Don't put the cart before the horse!

1. OOP
2. Functional decomposition
3. Structured programming
4. Unstructured programming

• DOD doesn't mean you can't use objects and other abstractions
• You can use DOD in any domain and any language, even enterprise Java

My thesis

Think about the data FIRST, before anything else.

Thank you!
